ΠΥΡΑΝΤΟΧΗ ΣΩΛΗΝΑ ΟΔΕΥΣΗΣ ΚΑΛΩΔΙΩΝ

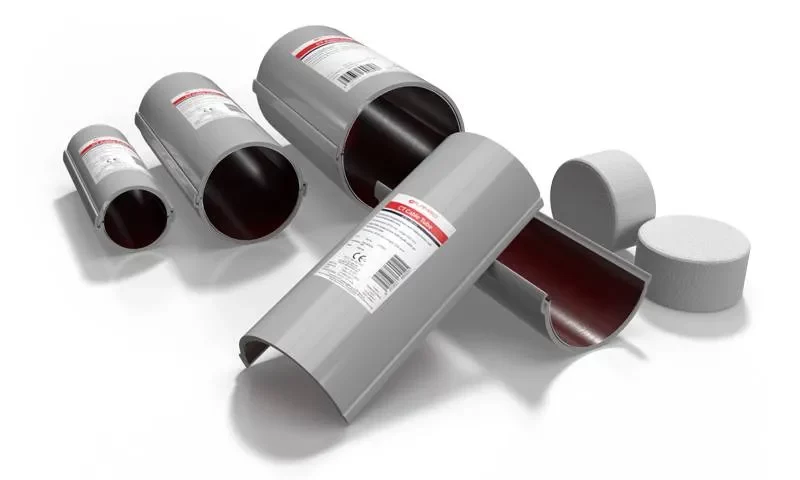

Consisting of two half shells with intumescent inlays. Especially easy to use for the construction of simple penetration seals in core drillings.
Field of Application
- as individual penetration seals
- as retrofitting devices
- in plasterboard walls, solid walls, solid floors
Technical Data
| Certificate of usability | ETA-16/0016 |
| Coating | Grey, inner lining red |
| Material |
|
| Closure of half shells | click lock |
| Dimensions/ Variants | Ø 60 mm / length 150 mm Ø 90 mm / length 150 mm Ø 90 mm / length 200 mm Ø 90 mm / length 300 mm Ø 120 mm / length 150 mm Ø 120 mm / length 200 mm Ø 120 mm / length 300 mm |
| Soundproofing | 64 (-2;-6) dB Dn, e; Dn, w (C; Ctr) |
| Storage |
Storage indoors at room temperature (+5 °C to +30 °C). |
| Safety information |
No hazardous material according to German Hazardous Substances Act (GefStoffV) and no hazardous material according to German Act on the Transport of Dangerous Goods (GGVS/ADR). |
| Declaration of performance (DOP) no. | 0127-CT_CT-ML-CABLE-TUBE |
